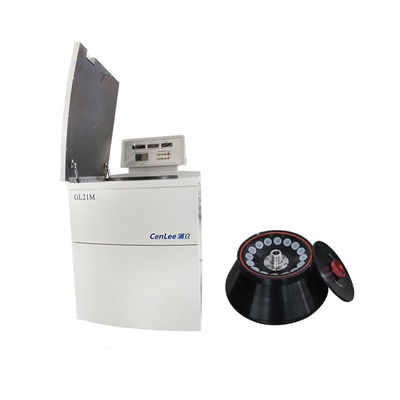

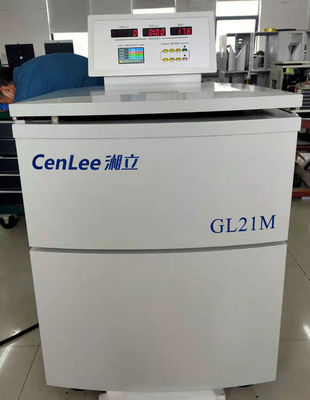

21000rpm High Speed Refrigerated Centrifuge with 48900×g RCF and Touch Panel for Laboratory Use

Name: 21000rpm High Speed Refrigerated Centrifuge with 48900×g RCF and Touch Panel for Laboratory Use
Brand: Changsha CenLee Technology Co., Ltd,
SKU: GL21M
Price: 50,000,001.00 USD
Availability: InStock

Marchio:	Cenlee
Numero di modello:	GL21M
MOQ:	1

Informazione dettagliata

Descrizione di prodotto

Informazione dettagliata

Luogo di origine:

Hunan, Cina

Velocità massima:

21000r/min

Max rcf:

48900×g

Alimentazione elettrica:

CA 220 V 50 Hz 35 A

Capacità massima:

3000 ml

Tipo di motore:

Motore senza spazzole

Precisione della velocità:

± 20 r/min

Tipo di rotore:

Rotore angolare

Precisione della temperatura:

± 1 ℃

Gamma di tempistica:

0-999min

Intervallo di temperatura:

-20 ℃ ~+40 ℃

Energia:

5KW

Rumore della macchina:

≤65db (a)

Dimensioni:

860×730×1200mm

Peso:

300 kg

Sistema di raffreddamento:

Refrigerazione ecologica senza fluoro (refrigerante R404a)

Evidenziare:

21000rpm Refrigerated Centrifuge

48900×g RCF High Speed Centrifuge

Touch Panel Laboratory Centrifuge

Descrizione di prodotto

21000rpm High Speed Refrigerated Centrifuge

The 21000rpm high speed refrigerated centrifuge utilizes the principle of centrifugal sedimentation to separate, concentrate or purify cells (particles) with different densities in the solution under the action of centrifugal force.

Technical Specifications

Model	GL21M	Temperature accuracy	±1℃
Maximum speed	21000r/min	Timing range	0-999min
Maximum RCF	48900×g	Motor	Variable frequency motor
Maximum capacity	3000ml	Temperature range	-20℃~+40℃
Sample range	0.5ml-500ml	Up/down shift	0-9 shift
Speed Accuracy	±20r/min	Power supply	AC 220V 50Hz 35A
Power	5KW	Machine noise	≤65dB(A)
Dimensions	860×730×1200mm	Weight	300kg
Cooling System	Eco friendly fluorine-free refrigeration (refrigerant R404a)

GL21M Matched Rotor List

Rotor type	No.	Capacity	Max Speed(r/min)	Max RCF(×g)
Main machine	GL21M		21000	48900

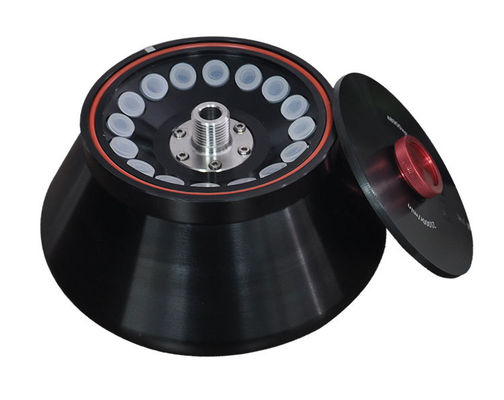

Angle rotor	NO.1	16×10ml(adapter 16×5ml/16×1.5ml)	21000	48900
Angle rotor	NO.2	6×50ml	20000	43000
Angle rotor	NO.3	8×50ml	18000	37600
Angle rotor	NO.4	8×100ml	12000	19800
Angle rotor	NO.5	6×300ml	12000	22470

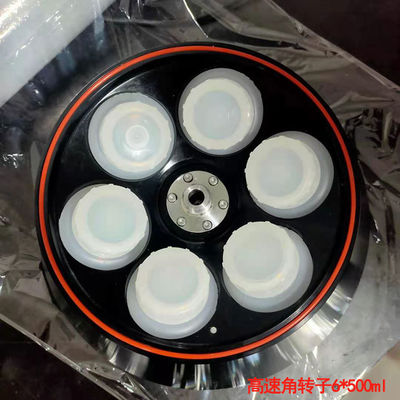

Angle rotor	NO.6	6×500ml	10000	18705
Continuous separation rotor	NO.7	1800ml	14000	21710
Continuous separation rotor	NO.8	3000ml	8000	9450
Intermittent rotor	NO.9	1000ml	14000	21500
Intermittent rotor	NO.10	1200ml	12000	19350
Intermittent rotor	NO.11	3000ml	10000	14890

Key Features

Touch panel with LED digital or LCD large screen display, allowing parameter adjustments during operation
High-power brushless frequency conversion speed motor with European imported ultra-high speed bearings
Advanced frequency conversion speed controller for precise operation
Imported compressor unit (refrigerant R404a) with adjustable temperature, high precision control, low vibration and noise
Programmable operation with storage for 9 programs and 40 custom working modes
Pre-cooling design for fast cooling and efficient operation
Dual safety door lock with comprehensive protection systems (over-temperature, over-speed, imbalance, etc.)
Pulse function for short centrifugation cycles

Product Images
